SIDUMP’R SDR449-4971.
| Stock: SDR449-4971. | Manufacturer: SIDUMP'R |
Detailed Specs
Additional Information
Quad-Axle 48′ 10″
102″
Tub Down 100″
In Dump Position 129″
21,700 lbs
38′ or 40′ on select models
36′: Water Level (23 cu yds); Strike-Off (32 cu yds)
38′: Water Level (24 cu yds); Strike-Off (34 cu yds)
40′: Water Level (25 cu yds); Strike-Off (36 cu yds)
42 degrees
Standard: 18″
Optional: 23″
2-Speed
Standard: Recyo AR23 Air Ride
Optional: Spring
Reyco 25,000 lbs
Optional: Lift OR Steerable Lift
11r 22.5 Aluminum
11r 24.5 Steel
11r 24.5 Aluminum
385 Super Singles
425 Super Singles
22.5″, 24.5″, 385, 425, 455 super singles
Ultra rubber spray suppressing with Sidump’r logo
1″ steel lines surrounded by rubber garments.
3-stage single cylinder. As each stage extends out, the dump cycle becomes faster. More push and pull power than any 2-cylinder model. 2-year warranty.
38′ or 40′ on select models
Grote LED 12 Volt rubber mount sealed lighting and harness system with 7 pole electrical socket.
Belting or custom color carbon fiber
Composite bushing roller pin design requires no greasing.
Bolt on for ease of repair. Options include DOT bumper only, push block only or combination of both.
Haldex 2S1M
Red and white conspicuity markings & tub latching system meets D.O.T. secured load requirements at all times while traveling down the road!
Yellow, black, white, grey, or custom colors. 2 year paint warranty.
Areo 2 tarp system with mesh net and safety switch
Electric tarp in mesh or solid vinyl, safety switch is now standard
18″ or 36″ extensions
3/16″ steel tub optional on certain tub lengths
38′ or 40′ on select models
Standard lift or load sensing lift control valve.
Steerable lift axle with reverse sensor.
Air brakes over disc brakes
Monitors air pressure in tires
2-Speed
Give us the paint code we can match most colors
22.5″, 24.5″, 385, 425, 455 super singles
Steel or aluminum, black wall
Call for customizable options
Description

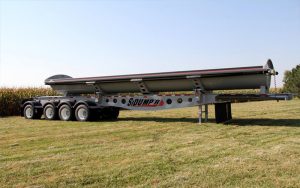

The 5 Axle Trailer by Sidump’r, featuring the SDR449-4971 model, is designed for heavy-duty operations requiring maximum stability and capacity. With a 48′ 10″ frame length, this trailer accommodates AR450 rolled tubs in 36′, 38′, and 40′ sizes, offering capacities up to 25 cu. yds at water level and 36 cu. yds at strike-off. Key features include a 42-degree dump angle, a powerful 3-stage single hydraulic cylinder for efficient dump cycles, and customizable suspension, wheels, and axles. Standard safety and durability elements include LED lighting, mud flaps, a pivot joint system, and a 2-year paint warranty.
