SIDUMP’R SDR240-49 | SDR240-73 | SDR238-49
| Stock: SDR240-49 | SDR240-73 | SDR238-49 | Manufacturer: SIDUMP'R |
Additional Information
SDR238-49 – 38’
SDR240-49 – 40′
SDR240-73 – 40′
102″
Tub Down 100″
In Dump Position 129″
15,600 lbs
38′ or 40′ on select models
Water level: 23 cu yds
Heep/Strike-off: 32 cu yds
42 degrees
Standard: 18″
Optional: 23″
2-Speed
Standard: Recyo AR23 Air Ride
Optional: Spring
Reyco 25,000 lbs
Optional: Lift
Standard: 11r 22.5 Steel
Optional:
11r 22.5 Aluminum
11r 24.5 Steel
11r 24.5 Aluminum
385 Super Singles
425 Super Singles
22.5″, 24.5″, 385, 425, 455 super singles
Ultra rubber spray suppressing with Sidump’r logo
3-stage single cylinder. As each stage extends out, the dump cycle becomes faster. More push and pull power than any 2-cylinder model. 2-year warranty.
38′ or 40′ on select models
Grote LED 12 Volt rubber mount sealed lighting and harness system with 7 pole electrical socket.
Belting or custom color carbon fiber
Composite bushing roller pin design requires no greasing.
Bolt on for ease of repair. Options include DOT bumper only, push block only or combination of both.
Haldex 2S1M
Red and white conspicuity markings & tub latching system meets D.O.T. secured load requirements at all times while traveling down the road!
Yellow, black, white, grey, or custom colors. 2 year paint warranty.
Areo 2 tarp system with mesh net and safety switch
Electric tarp in mesh or solid vinyl, safety switch is now standard
18″ or 36″ extensions
3/16″ steel tub optional on certain tub lengths
38′ or 40′ on select models
Standard lift or load sensing lift control valve.
Steerable lift axle with reverse sensor.
Air brakes over disc brakes
Monitors air pressure in tires
2-Speed
Give us the paint code we can match most colors
22.5″, 24.5″, 385, 425, 455 super singles
Steel or aluminum, black wall
Call for customizable options
Description

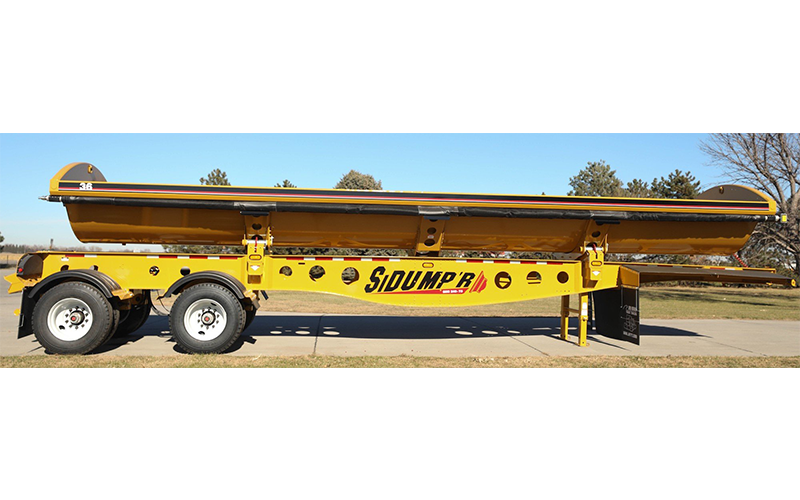

The Tandem Axle Trailer by Sidump’r is a robust and versatile solution for heavy-duty hauling needs. Featuring models like SDR240-49, SDR240-73, and SDR238-49, these trailers come with a 40-foot frame length and a durable 36-foot AR450 rolled tub with no center divider, offering a water-level capacity of 23 cu. yds and a heap capacity of 32 cu. yds. With a dump angle of 42 degrees, a 3-stage single hydraulic cylinder for faster dump cycles, and customizable options for suspension, tires, and landing gear, this trailer is built for performance. Additional highlights include LED lighting, mud flaps, and a 2-year paint warranty, ensuring durability and safety.
